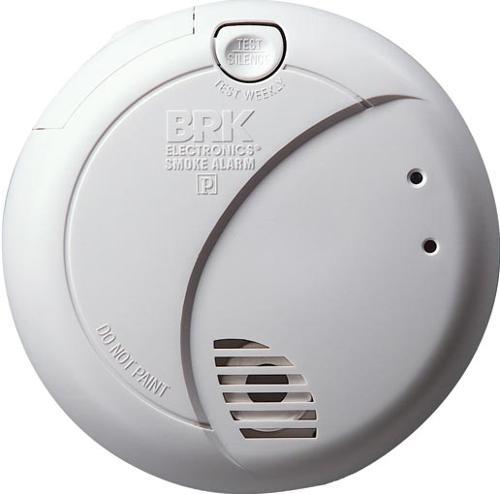

BRK®/First Alert® Model 7010BA (Cat. 7016BTCA) is a wire-in, 120V AC 60Hz single and/or multiple station photoelectric smoke alarm specifically designed for residential and institutional applications including sleeping rooms of hospitals, hotels, motels, dormitories and other multi-family dwellings as defined in standard NFPA 101. Model 7010BA complies with ULC S531, NFPA 72, HUD, FHA and other agencies that model their codes after the above agencies. Alarms are interconnectable with up to18 devices, of which 12 can be smoke alarms. BRK®/First Alert® 7010BA features a photoelectric smoke sensing chamber, an 85dB horn, a 9V battery back-up and a “silence” feature. Optipath 360 technology™ provides 360 degrees of direct access to the smoke sensing chamber. Alarm Latch: Easily identifies initiating alarm even after alarm condition has subsided. The “Perfect Mount” system features a gasketless base and a mounting bracket that keeps the alarm secure over a wide rotation range to allow for true alignment. This will allow
fine-tuning on the positioning to compensate for out of aligned wall studs and to keep the wording level when wall mounting. Battery installation and removal can occur while the unit is mounted to the ceiling or wall via the side load battery compartment. Other Contractor Preferred features include a dust cover to keep alarm clean during construction, keyhole slots in the mounting bracket eliminate the need to remove the electrical box screws for installation. Two locking features are provided to prevent battery theft and/or theft of the unit. Connection to AC power is made with a “Quick Connect” wiring harness. Installation is quick, easy and cost effective.

▪ 120V AC With 9V Battery Backup Smoke Alarm
▪ Photoelectric Smoke Sensor
▪ Optipath 360 Technology™: Patented Photoelectric Smoke Sensing Design
▪ Latching Alarm Indicator: Remembers Which Unit Initiated An Alarm
▪ Two Locking Features: Pins Are Provided To Lock Battery Drawer And/Or Alarm To Base
▪ Single/Test Silence Button
▪ 10-Year Limited Warranty
▪ Mfg #7016BTCA
