Shield Security® Size 1-4 Heavy-Duty Hydraulic Door Closer, Grade 1

Part 801201
Brand Shield Security
Mfg #TC201ADA-AL-M
TBD

About this item

Meets the performance standards of Grade 1 and ADA compliant door closers. Items are highly recommended for commercial applications. They're made from solid aluminum for more longevity. Moreover, the spring tension is adjustable.

  • Aluminum alloy body with aluminum finish
  • Comes non-handed / reversible therefore it can be installed on a left hand or a right hand door

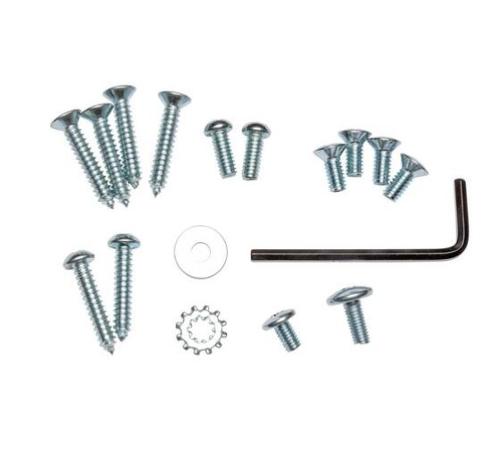

  • Supplied with both wood and machine screws
  • For standard and top jamb mounting

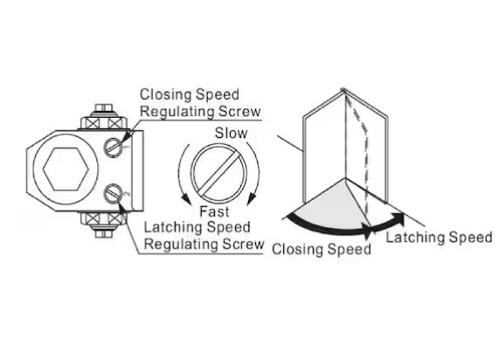

  • Adjustable Closing And Latch Speeds

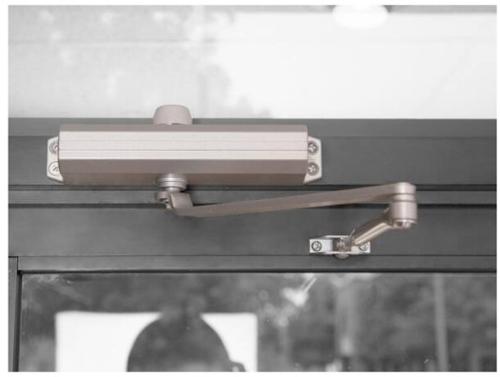

  • Regular Arm, Parallel Or Top Jamb Mount
  • For Interior Doors Up To 44" Wide And Exterior Doors Up To 36" Wide And Weight Up To 243 Lbs
  • CTC Hole Pattern: 9 1/6" x 3/4"
  • Body Length: 9 7/8"
  • ANSI Grade 1
  • ADA Compliant
